PRESSES |
POWER |
CYLINDER |

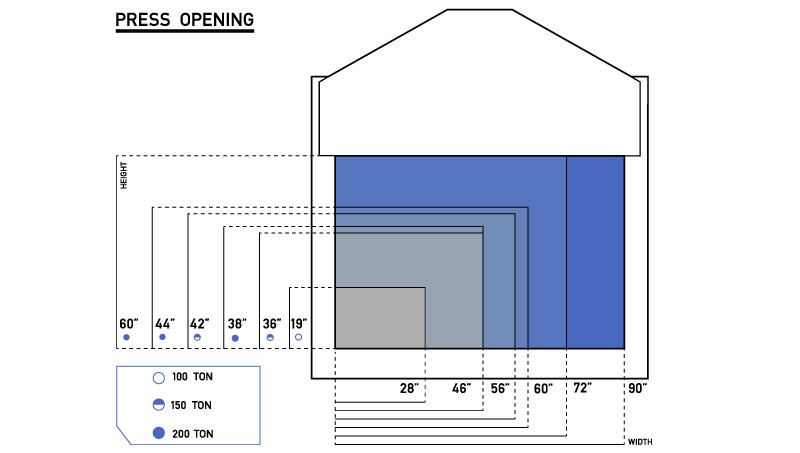

OPENING |
PLATEN HEAD |

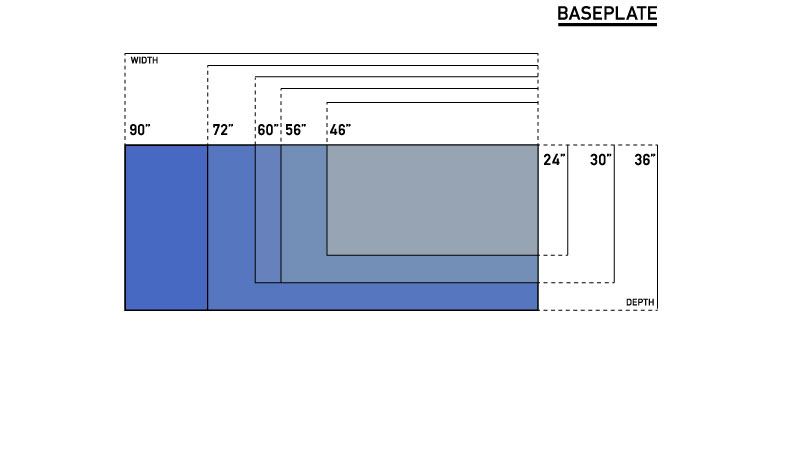

BASE PLATE |
OPTIONS |
|---|---|---|---|---|---|---|
| 28" 100 TON Model # 28100 |
100 Volt | 13" | 19" | N/A | N/A | Saftey Cage |
| 46" 150 TON Model # 46150 |
110/220 Volt | 18" | 36" | 2" x 25" | 1.5" x 24" x 46" | Saftey Cage Honda Gas Motor/Pump |
| 46" 200 TON Model # 46200 |
110/220 Volt | 18" | 38" | 2.5" x 26" | 1.5" x 24" x 46" | Saftey Cage Honda Gas Motor/Pump 24" Hydraulic Cylinder 7HP Electric Pump |
| 56" 150 TON Model # 56150 |
110/220 Volt 1.5HP | 18" | 42" | 2.5" x 26" | 1.5" x 24" x 46" | Saftey Cage Honda Gas Motor/Pump 24" Hydraulic Cylinder 7HP Electric Pump |
| 60" 200 TON Model # 60200 |
110/220 Volt 1.5HP | 18" | 44" | 2.5" x 30" | 1.5" x 30" x 60" | 24" Hydraulic Cylinder 7HP Electric Pump |
| 72" 200 TON Model # 72200 |
220 Volt 7HP | 36" | 60" | 2.5" x 36" | 2" x 36" x 72" | Removable Base Plate 10HP Electric Pump |
| 90" 200 TON Model # 90200 |
220 Volt 7HP | 36" | 60" | 2.5" x 36" | 2" x 36" x 90" | Removable Base Plate 10HP Electric Pump |
